10.1
- RING FITTING MACHINE |
THE
RING FITTING MACHINE is used for automatically fitting
plastic or metal rings into a rubber packing ring.
The machine is composed of a mechanical hand with a vertical
electrical axis, which draws the packing into which the
plastic ring is to be fitted from an accumulation store
and places it on centering pliers.
The pliers take the packing to the fitting area through
a linear movement. At the same time, a horizontal saddle
draws the plastic ring to be fitted into the rubber packing
from a vertical store placed at 90° from the packing
store. |
|
| |
10.2

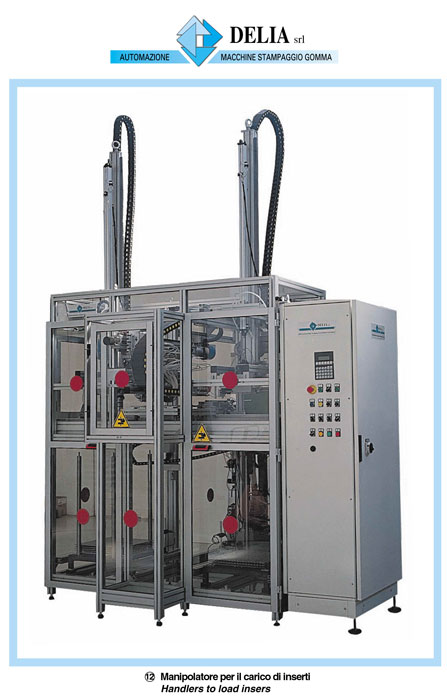

- MANIPULATOR FOR LOADING METAL INSERTS (SCREWS) ONTO
A 399 PIECES TRAY. |
| The
MANIPULATOR IS a machine for automatically loading and
unloading moulding presses. THE HANDLERS are stand alone
electric pneumatic and/or hydraulic units which are coupled
to vertical and horizontal injection compression presses
to remove moulded pieces and to load inserts. Because
they require very limited installation space, the standard
tools which are used to automate the insert loading operations,
to remove moulded items, to remove and separate flashes
from extracted items and to positions such articles in
a precise order, can be mounted easily on the compact
base of the handlers |
|
|
|
